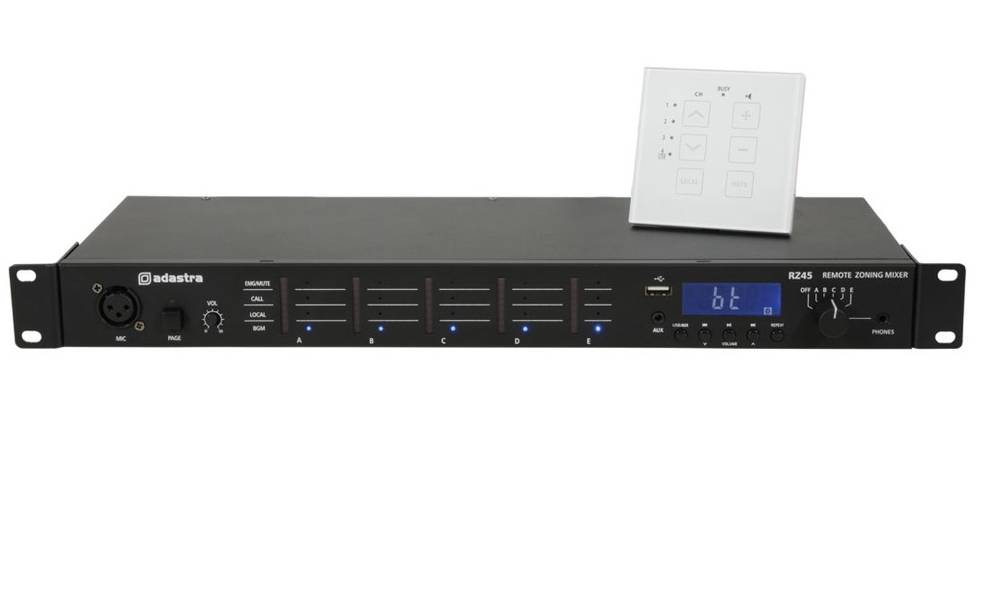

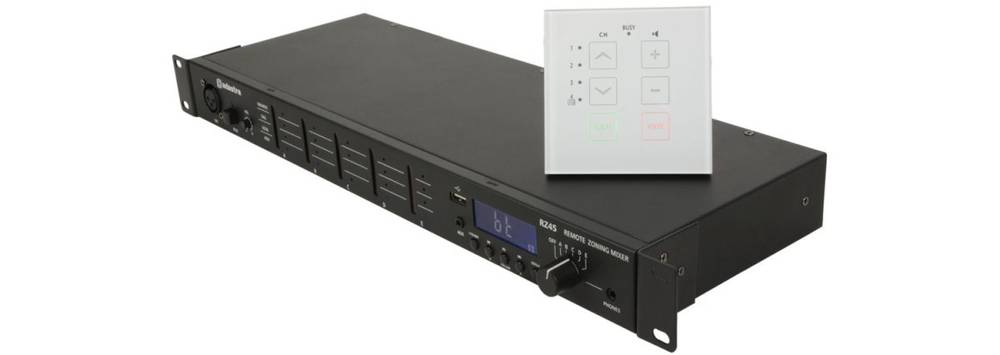

Adastra RZ45 Remote Zone Audio Matrix 953.045UK

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.

• Up to 5 remotely operated zones
• Remote wiring via standard network type cable
• 4 selectable input sources or local audio to any zone
• Inbuilt USB audio player with Bluetooth
• Emergency mute and audio in contacts
• Supplied with one touch remote wall plate (expandable up to 5)

The box for this item contains :

• RZ45 remote zone audio matrix unit

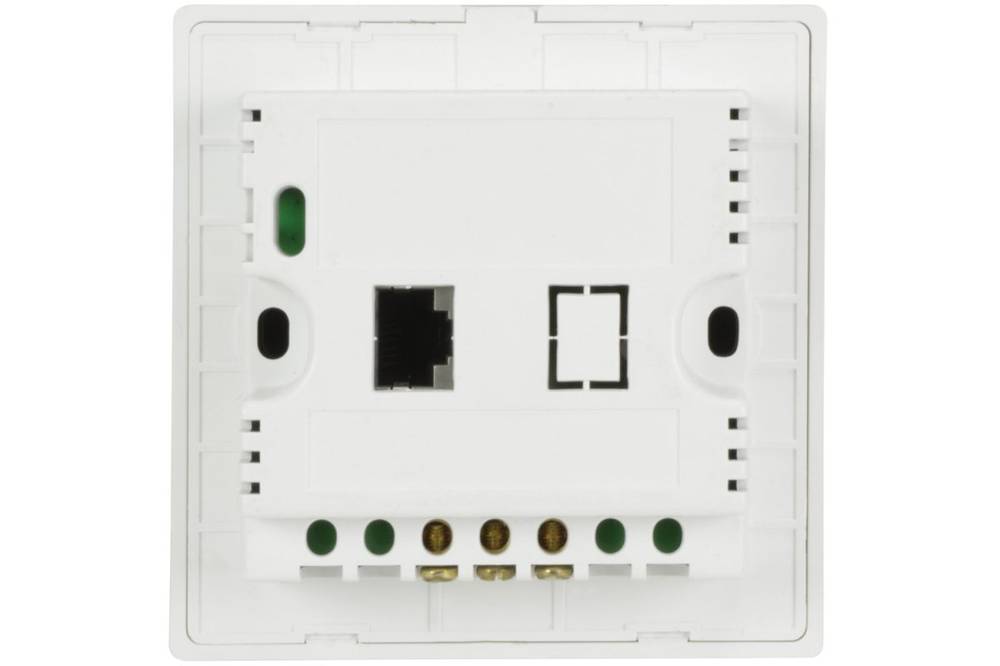

• TR86 remote touch panel
• 8-core RJ45 remote panel lead
• IEC mains power lead(s)
