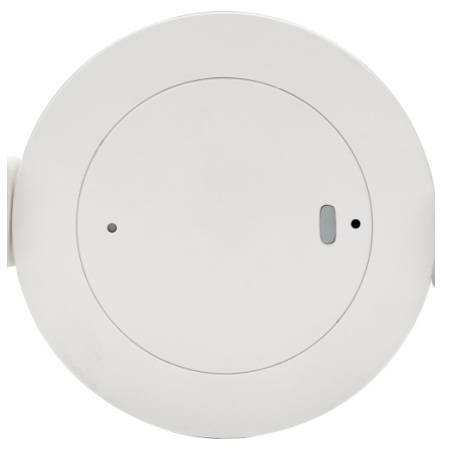

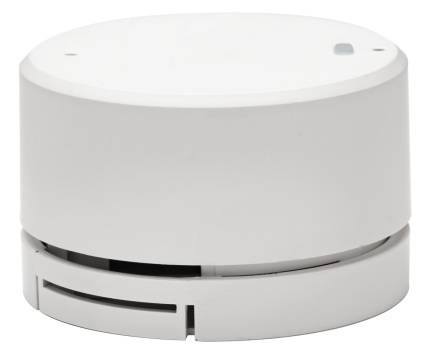

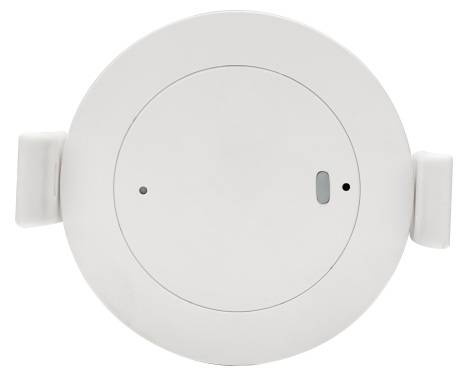

HDL Sensor Occupancy Recess/Surface Mount MSMW24-KT.11
96,00 €
0
People watching this product now!
Shipping & Delivery
-
Παραλαβή από την αποθηκη μας
Δωρεάν €20
-
Παράδοση σε κατάστημα Acs
2-3 ημέρες
€7,00
-
Αποστολή στο Χώρο Σας
2-3 ημέρες
€15,00
-
Εγγύηση 1 έτος
-
Δωρεάν επιστροφές εντός 14 ημερών
Specification
Connectivity
Description
- Human presence detection: 24GHz millimeter wave radar technology, accurate and high sensitivity for detecting human motion and breath
- Illuminance monitoring: Real time illuminance can be detected by the device, providing smart scene control in accordance with actual illuminance
- Temperature monitoring: Built-in temperature sensor for monitoring real-time environment status
- Dry contact input: Supports 2 dry contact inputs for logical judgment.
- Easy lighting control: supports controlling 1 lighting device, supports automatic and semi-automatic control, and controls switches based on environmental illumination
- Easy HVAC control: Supports controlling 1 HVAC device, with HVAC on/off delay function
- Constant brightness control: Supports one constant brightness automatic adjustment function module, which automatically senses environmental brightness and adjusts dimming values
- 2 working modes: Single mode and master/slave mode. One master sensor can have 15 slave sensors, providing wide range of detection
- Logic settings: 5 independent logic modules, each of which can control 10 targets, including switches, dimming, alarm devices, etc
- Logical input conditions: human body detection status, illuminance value, temperature value, dry contact input, external message, threshold comparator
- 3 logical relations: AND, OR, XOR
- Control types: switch control, absolute dimming control, curtain control, alarm control, percentage control, sequence control, scene control, string (14 byte) control, threshold control and logical combination control
- External messages can alter the validity of logic
- Support KNX Data Secure
