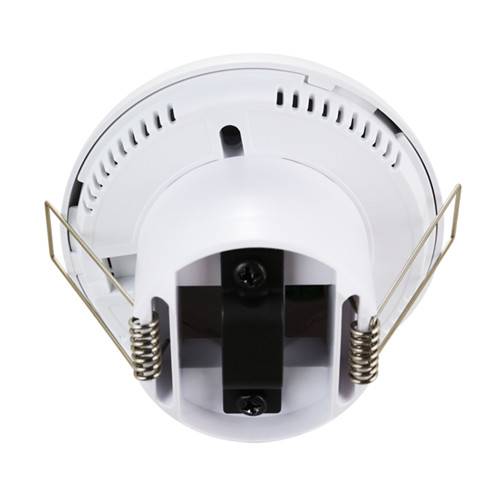

HDL Sensor Presence Reccess Mount M/SIS05.1
116,00 €
0
People watching this product now!
Shipping & Delivery
-
Παραλαβή από την αποθηκη μας
Δωρεάν €20
-
Παράδοση σε κατάστημα Acs
2-3 ημέρες
€7,00
-
Αποστολή στο Χώρο Σας
2-3 ημέρες
€15,00
-
Εγγύηση 1 έτος
-
Δωρεάν επιστροφές εντός 14 ημερών
Specification
Connectivity
Description
- KNX Presence Sensor is a multi-function sensor which contains PIR sensor, temperature sensor and brightness sensor. 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master / slave mode are supported
- 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs. Control targets include switches, dimming, alarm devices, etc
- 1 sensor status feedback function block, including data and status feedback for human presence detection and photo sensitive sensors, and intrusion alarms
- 2 lighting control function blocks, which support automatic and semi-automatic control, and switch control according to ambient illumination
- 1 constant brightness automatic adjustment function block can compare the ambient illumination with the set illumination value, adjust the brightness of the light, and select the curtain combination dimming
- 2 HVAC control blocks enable automatic and semi-automatic mode, HVAC open dalay and duration srttings
- Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control, Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control
- Logic inputs: PIR sensor status, brightness value, temperature and humidity value, and external telegrams
- 2 logical relations: AND, OR
- 2 working modes: Single mode and master / slave mode
- The logic validity can be set by external telegram
