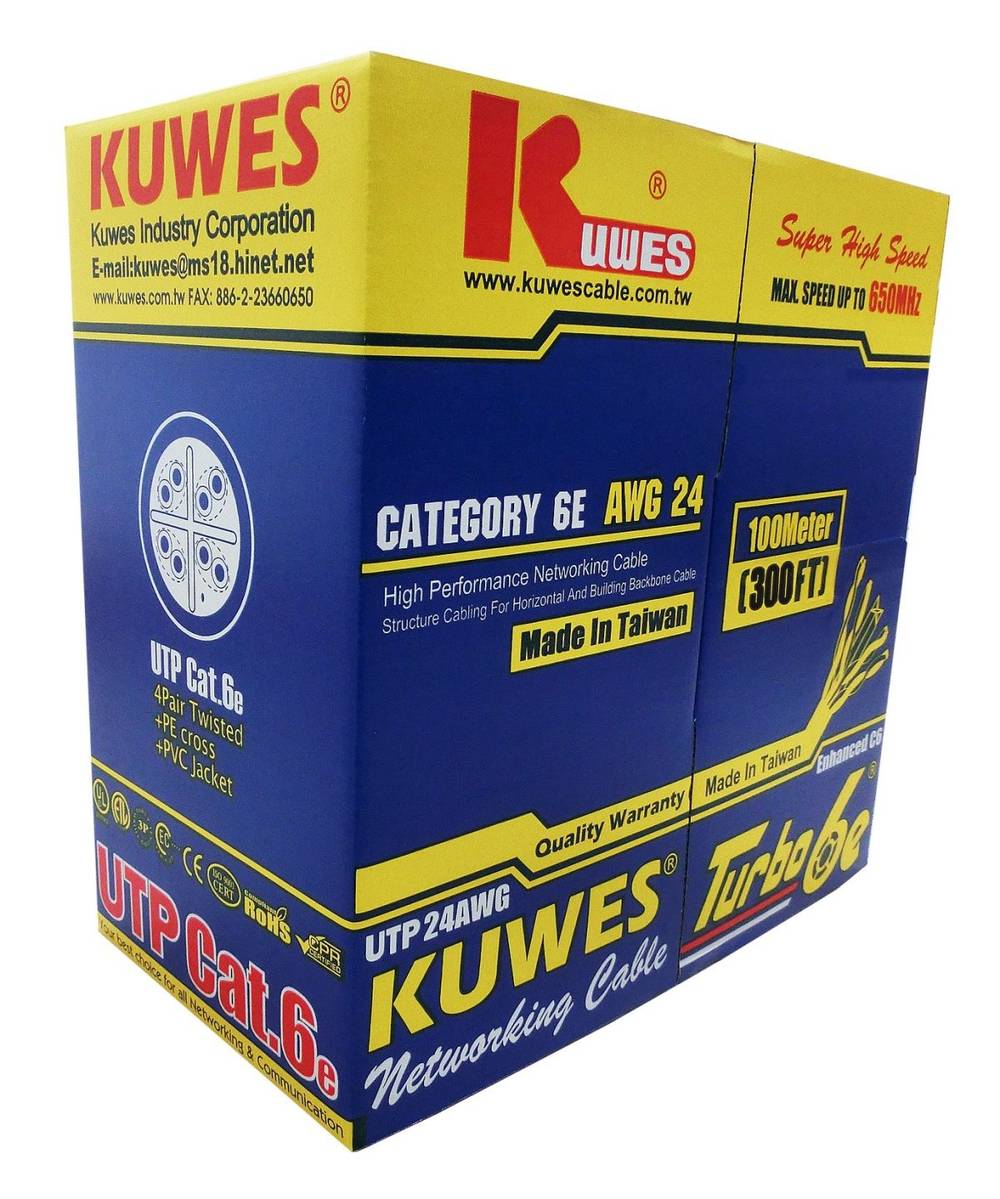

Kuwes CAT6 UTP Pure Copper Outdoor 100m Black
89,00 €
0
People watching this product now!
Shipping & Delivery
-
Παραλαβή από την αποθηκη μας
Δωρεάν €20
-
Παράδοση σε κατάστημα Acs
2-3 ημέρες
€7,00
-
Αποστολή στο Χώρο Σας
2-3 ημέρες
€15,00
-
Εγγύηση 1 έτος
-
Δωρεάν επιστροφές εντός 14 ημερών
Specification
Connectivity
Description
Conductor: Solid Bare copper x 24AWG ( Turbo6e Type)
Insulation:
- HDPE
- Min. Avg. Thickness: 0.23 mm
Color Code:
- Pair 1: Blue & White/Blue;
- Pair 2: Orange & White/Orange
- Pair 3: Green & White/Green;
- Pair 4: Brown & White/Brown
Jacket:
- LDPE
- Min. Avg. Thickness: 0.6 mm;
- Min. Thickness: 0.50 mm
- Approximate O.D.: 5.7 mm +/- 0.3mm
Electric Requirements: (Cable length: 100M)
- Characteristic Impedance(Zo): 85 115 (1 500 MHZ)
- DC. Resistance Capacitance Unbalance: 5%
- Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
- Conductor Resistance:7.32 / 100M 20°C Max
- Mutual Capacitance: 5600 pF/100m Max
- Spark Test: 2.5KV
- Nominal Velocity of Propagation (NVP): 69%
